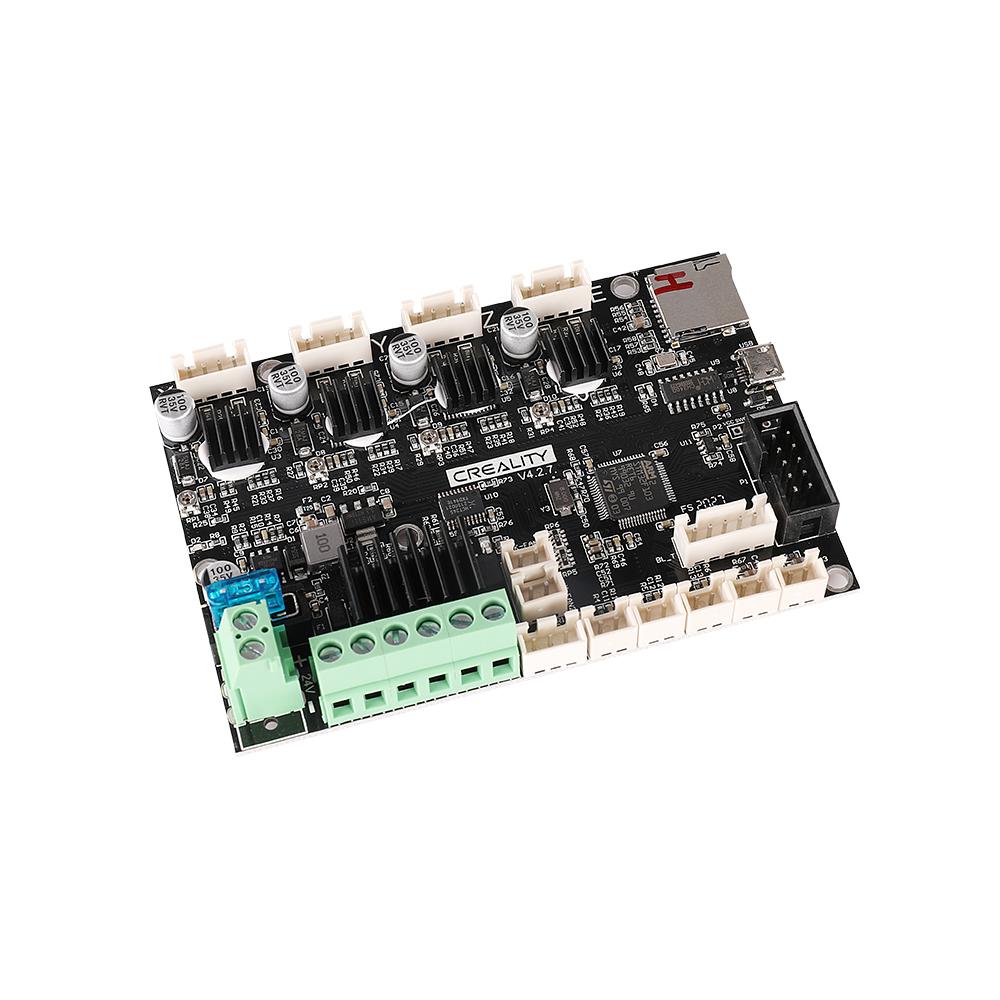

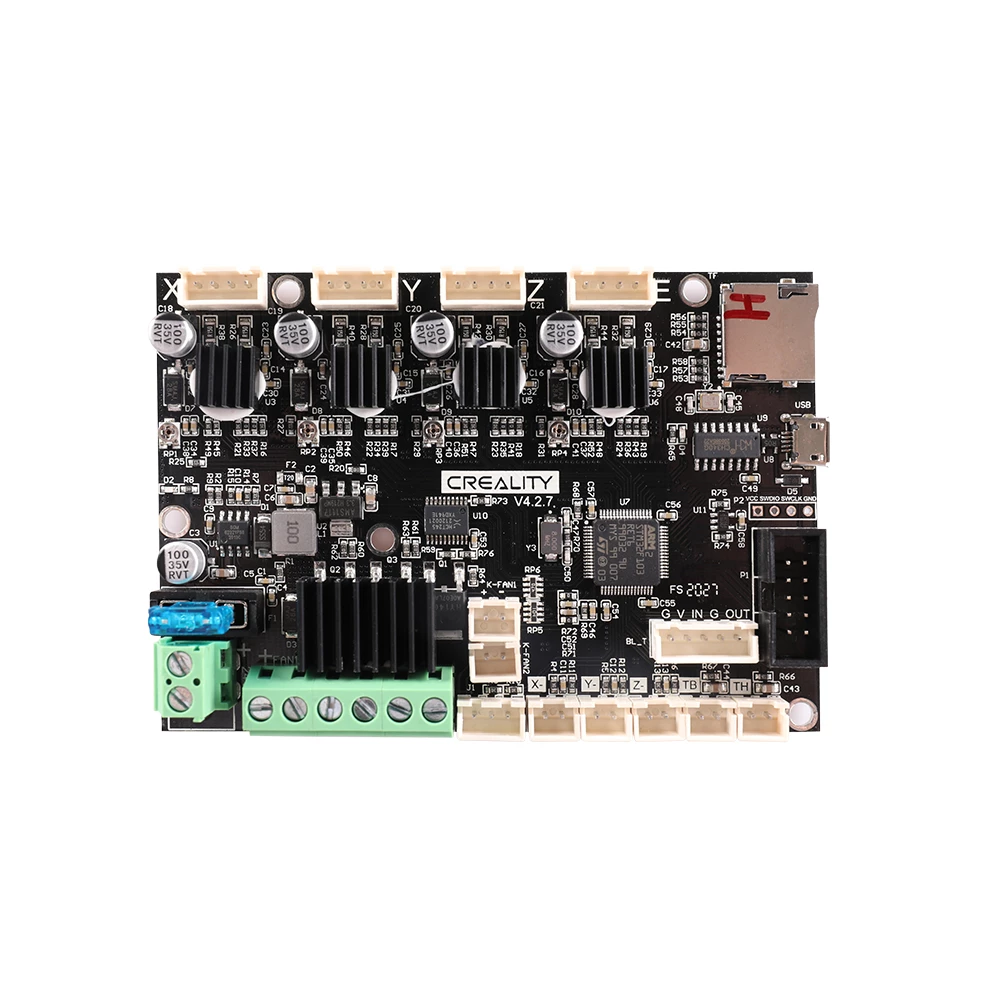

Creality V4.2.7 Silent Board For Ender 3 / 3 Pro / 3 V2

Creality Silent Mainboard: New Upgraded V4.2.7 Motherboard For Ender 3, Ender 3 Pro, Ender 5.

Bit: 32
Integrated motor drivers: TMC2225
Updating firmware: MicroSD card
Connections: Micro-USB, microSD card

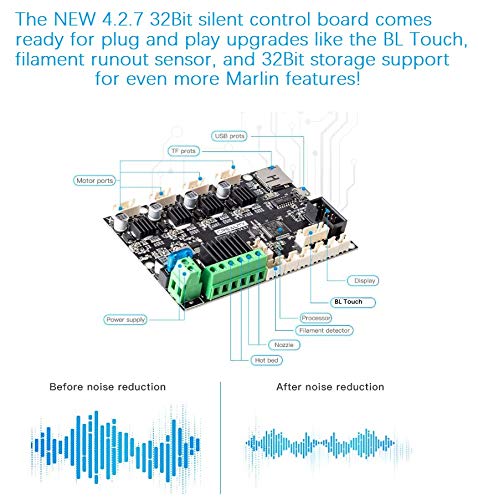

Ports For: 4x motors, 2x thermistors, 3x endstops, 3x fans, BLTouch, filament runout sensor
Compatible firmware: Marlin 2.0, Marlin 2.0 forks
Supports linear advance: No;
Notice: Not applicable to Ender 3 Max

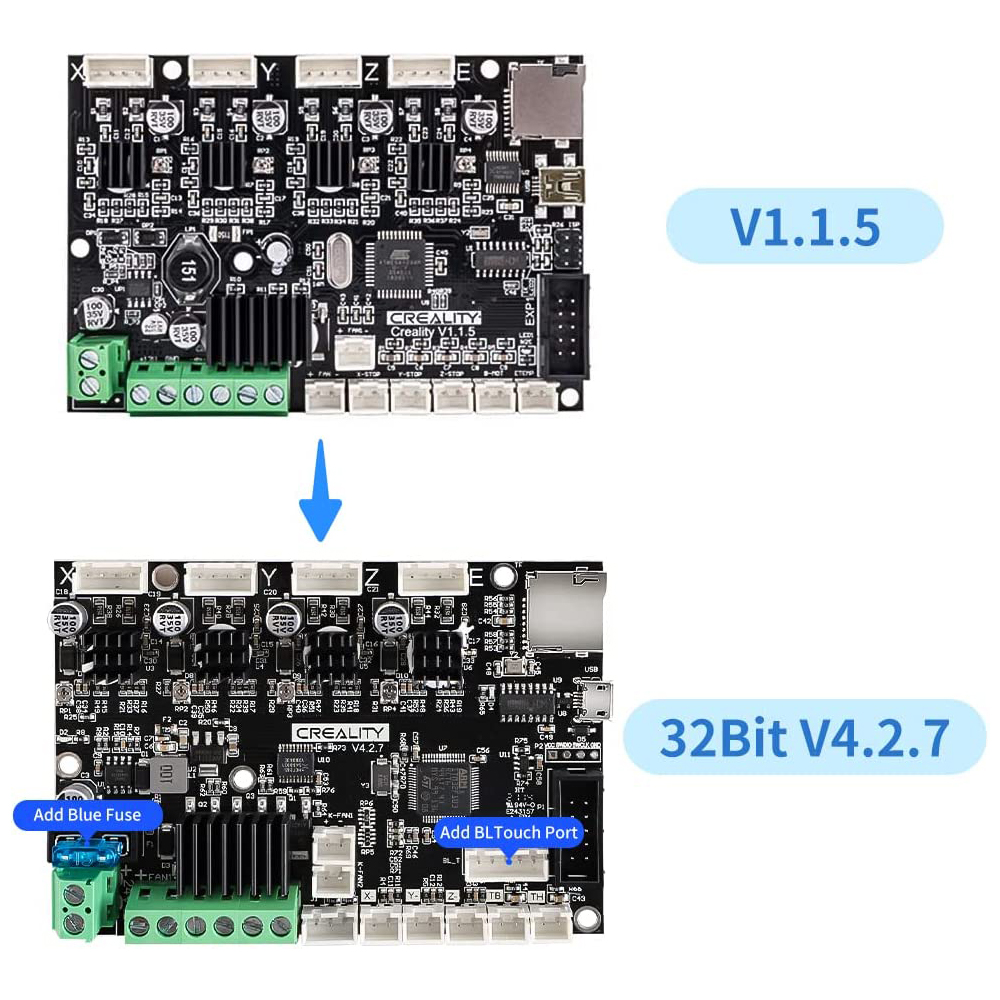

Difference to V1.1.5 Older Version:

• Super Quiet: The microcontroller is upgraded from 8-bit to 32-bit, the running speed is obviously accelerated; the noise is lower and the precision is higher. Increase material breakage detection and automatic leveling function.
• Driver: TMC2208 driver & Marlin 1.1.9 for V1.1.5 mainboard while TMC2225 driver & Marlin 2.0.1 for V4.2.7 mainboard. Bootloader preinstalled on both version boards.
• More Safer: Thermal runaway protection is enabled. The Board is Optimized by Circuit, effectively solve the Heating Problem. Eeay to Operate: With USB Port,can be Worked With E/Z/Y/X Axis Motor.
  Voltage: Support 24V input voltage.

How to Update Firmware:

For the V4.2.7 board, please copy the firmware file to a formated SD card with no other files in it. Turn off the printer and unplug the power cord.
Insert the SD card & power cord, and turn on the printer. Wait 10s to complete the firmware updating process.
(we recommend a SD Card is in 8-16Gb)

TIPS & MORE:

The Ender-3/Ender-3 PRO, 3V2, Ender-5 PRO 3D Printer comes with the 4.2.7 Board (32 bits);
As for V1.1.4 and V1.1.5 have stopped selling. If need the firmware, you could click and download.

Creality Ender 3 Pro Silent Board Upgrade V4.2.7 Motherboard with TMC2225 Stepper Motor Driver for Ender 3 Pro 3D Printer
